Key takeaways
- First identify whether the building has one-pipe or two-pipe steam; the same symptom can point to different components in each system.
- Keep a simple operating log. Water added, room patterns, sounds, visible leaks, control calls, and service results are more useful than “the heat is bad.”
- Observe and document the system without bypassing safeties, changing pressure, selecting replacement parts, or opening fuel-burning equipment.
- Treat a gas odor, carbon monoxide alarm, uncontrolled steam release, or unsafe boiler condition as a safety response—not a maintenance experiment.
A useful steam owner’s manual does not turn a homeowner or small landlord into a boiler technician. It creates a stable baseline: what system serves the building, what normal operation looks like, what changed, and which records a qualified steam professional needs to diagnose the change.
That distinction is especially important in Brooklyn’s brownstones, row houses, and small pre-war buildings. Steam can be quiet and even when the boiler, venting, piping pitch, controls, and radiator components work as one system. When an owner changes one component without understanding that system, a cold room can become a building-wide balancing problem.

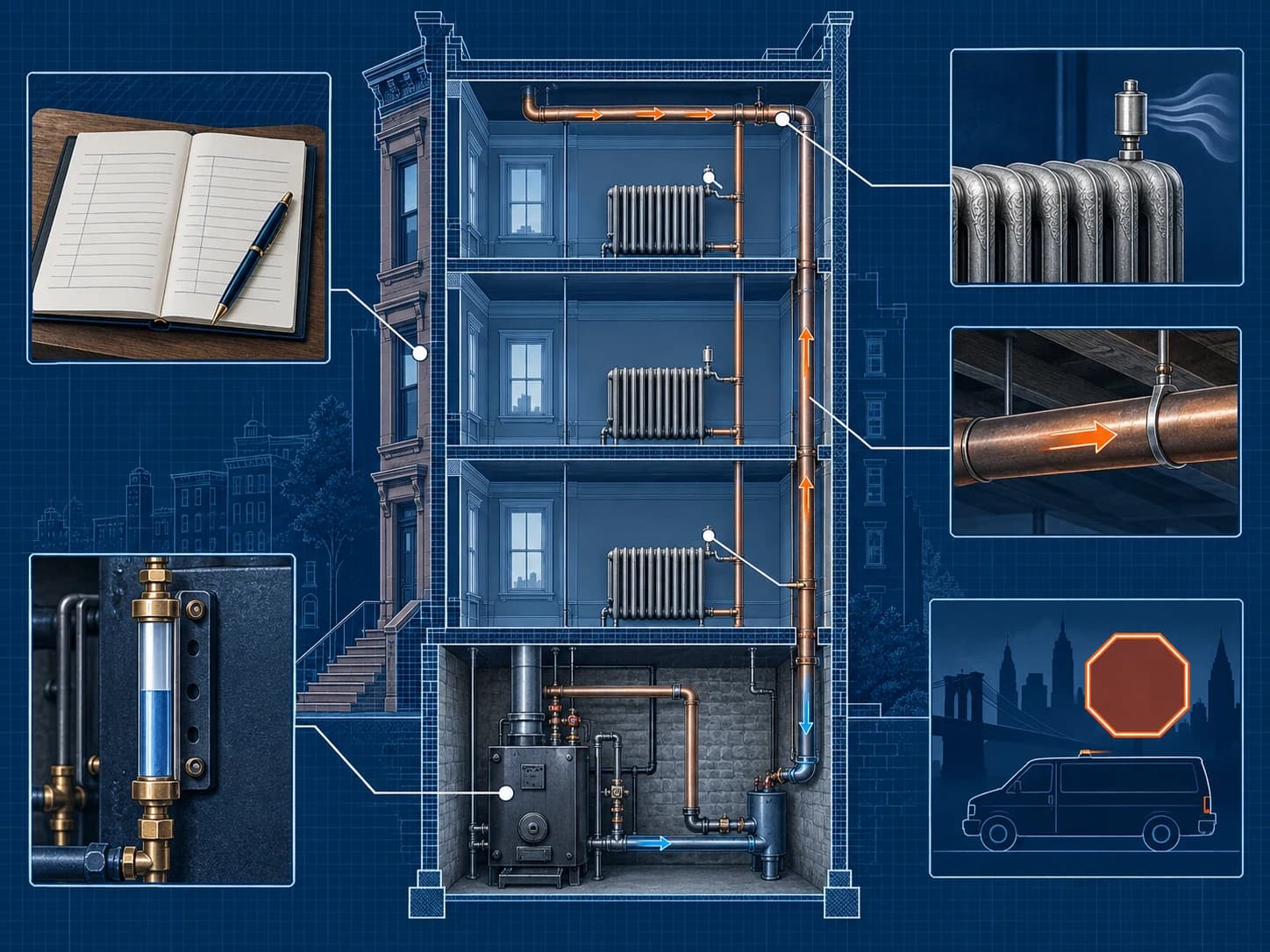

Start by identifying the steam system
Walk the building with a notebook and photograph the boiler nameplate, controls, accessible mains, and a representative radiator on each floor. Do not remove covers or touch hot piping to complete the inventory.
One-pipe steam normally gives each radiator one pipe connection. That connection carries steam toward the radiator and condensate back toward the boiler; an air vent on the radiator lets displaced air leave. The NYC Retrofit Accelerator’s one-pipe steam primer explains that steam and condensate move in opposite directions through the same pipe and that venting is central to distribution (NYC Retrofit Accelerator, One-Pipe Steam Optimization, retrieved 2026-09-10).
Two-pipe steam uses separate supply and return connections at the radiator. Many systems use steam traps or other return-side components, so a symptom that looks like a radiator-vent problem in a one-pipe system may have a different cause in a two-pipe system. Austin’s steam heating service page explains the service distinction and the system-specific diagnostic work.
Record uncertainty. “Third-floor radiator has two connections; return component not identified” is a better owner note than naming a part from a photo and ordering a replacement.
Build a one-page system identity card
Keep the identity card at the front of the boiler file and update it after a real change. Include:
- property address, dwelling-unit count, and whether the building includes commercial space;
- one-pipe, two-pipe, or “not yet confirmed” distribution type;
- boiler manufacturer, model, serial number, fuel, and available rating information;
- serving gas utility or oil service contact, where applicable;
- thermostat, timer, outdoor control, or building-control description;
- boiler-room shutoff and emergency-contact locations as documented by the service professional;
- floor-by-floor radiator and complaint map;
- current heating contractor, Licensed Master Plumber, managing agent, and after-hours contact;
- latest service date, open recommendations, and applicable DOB boiler filing status.
The card is not proof that the system is code-compliant or safe. It is the index that lets an owner, tenant, technician, or emergency responder start with the right equipment and history.
What should an owner observe?
Use the same observations each time so changes stand out.
| Observation | Useful record | What it can help a professional separate |
|---|---|---|
| Boiler water line | Time-stamped photo from the normal safe viewing position | Stable baseline versus surging, loss, or overfilling |
| Water added | Date and amount if metered or reliably known | Normal service event versus a repeating water-loss pattern |
| Call for heat | Control or thermostat call time and when rooms begin warming | Boiler response versus slow distribution |
| Room pattern | Floor, room, radiator, outdoor condition, and whether the problem repeats | One radiator, one riser, one main, or building-wide issue |
| Sound | Where and when banging, hissing, gurgling, or short cycling occurs | Pitch, venting, trapped condensate, control, or near-boiler questions |
| Visible moisture | Exact joint, valve, vent, return, or floor area if safely visible | Condensate leak, steam leak, feeder issue, or unrelated water source |
| Service result | Work performed by the professional and the before/after condition | Whether the intervention solved the original pattern |
The NYC Retrofit Accelerator recommends regular maintenance by trained staff, periodic air-vent inspection, annual burner tuning, and a detailed makeup-water record where a meter is available. It also advises consulting a qualified service provider before building upgrades (NYC Retrofit Accelerator, One-Pipe Steam Optimization, retrieved 2026-09-10).
Use a repeatable heating-season log
Steam problems are often patterns, not snapshots. Keep one row for each meaningful event:
| Date and conditions | Call for heat | Boiler-room observation | Room or radiator pattern | Water added | Action and result |
|---|---|---|---|---|---|
| Example: first cold morning | Control called at recorded time | Water line appeared stable; no visible leak | Rear top-floor room slow; other rooms normal | None recorded | Logged for service review |
Do not wait for a perfect instrument package. A consistent apartment thermometer, time, room name, and description are more useful than changing the method every week. Avoid guaranteeing that one temperature proves system balance; sunlight, open windows, building envelope conditions, and resident behavior can affect a room reading.
For occupied rentals, keep the operating log aligned with the owner’s legal heat obligation. HPD says heat season runs October 1 through May 31. When the outdoor temperature is below 55 degrees between 6 a.m. and 10 p.m., the indoor minimum is 68 degrees; from 10 p.m. to 6 a.m., the indoor minimum is 62 degrees regardless of outdoor temperature (NYC HPD, Heat and Hot Water Information, retrieved 2026-09-10).
If a tenant report is already active, use Austin’s HPD heat and hot-water complaint workflow to connect the service response, readings, communication, repair evidence, and agency record.
Know which changes need professional diagnosis
Call for qualified steam service when the log shows any of these changes:
- repeated water addition or a water line that no longer holds its prior pattern;
- steam or water escaping from a radiator vent, valve, pipe, return, or boiler connection;
- banging that is new, severe, or tied to a specific floor, riser, or part of the cycle;
- one area that stays cold while nearby rooms overheat;
- a burner or boiler that locks out, cycles differently, or fails to respond normally;
- visible corrosion, soot-like residue, displaced venting, or damaged piping;
- a repair or renovation followed by new noise, cold rooms, or changed cycling.
The right next step is diagnosis across the whole path—boiler, near-boiler piping, mains, risers, returns, radiators, vents or traps, and controls—not a promise that the nearest visible part is the cause. That owner-to-technician handoff is the purpose of Austin’s Brooklyn steam heating service.
Separate maintenance, compliance, and safety
An owner log supports all three lanes, but it does not replace any of them.
Maintenance keeps the operating baseline current and routes changes to trained service. Boiler compliance is a separate DOB record. DOB says covered low-pressure and high-pressure boilers must be inspected within the January 1–December 31 cycle, while the coverage and qualified-inspector rules vary by boiler stamp and property type (NYC DOB, Boiler Compliance, retrieved 2026-09-10). Use the annual boiler inspection guide rather than assuming a small residential building is automatically included or excluded.
Steam radiator records are also changing for some multiple dwellings. HPD’s current guidance says Local Law 151 of 2025 creates an annual notice process beginning January 2027 and at-least-biennial steam-radiator inspections in covered apartments where a child under six resides and in common areas of steam-heated multiple dwellings with three or more residential units. HPD specifies qualified inspectors and owner-maintained records (NYC HPD, Inspection of Steam Radiators, retrieved 2026-09-10). Treat that as its own compliance workflow; this operating log is useful background, not the required notice, inspection, affidavit, or record.
Safety overrides the manual. Carbon monoxide is colorless, odorless, and tasteless. Con Edison says that if you think someone may have carbon monoxide poisoning, get outside immediately and call 911; it also recommends periodic heating-system maintenance by a qualified contractor (Con Edison, Carbon Monoxide Safety, retrieved 2026-09-10). A gas odor, carbon monoxide alarm, uncontrolled steam release, smoke, or unsafe tagged equipment is not a moment to gather more data.
What belongs in the permanent steam file?
- system identity card and current contact sheet;
- manufacturer manuals and approved control information for the installed equipment;
- boiler, burner, venting, main, riser, return, radiator, vent, and trap inventory where known;
- heating-season operating logs and room-by-room complaint maps;
- service reports, test results, photos, invoices, and accepted repair recommendations;
- applicable DOB boiler inspection, defect-correction, permit, and sign-off records;
- applicable HPD complaint, steam-radiator notice, inspection, and repair records;
- gas utility or fuel-service records that affect operation;
- a dated list of open items, responsible person, next action, and closeout evidence.
After an emergency or major repair, preserve the old baseline and start a new one. If the boiler was tagged or shut down, follow the NYC boiler red-tag response guide before treating restored heat as the end of the record.
When to call Austin
Call Austin Plumbing & Heating when a Brooklyn steam system bangs, heats unevenly, loses or takes on water, leaks, short-cycles, has recurring radiator or trap problems, or needs a boiler and distribution review before replacement. Austin works on one-pipe and two-pipe systems and can connect the field diagnosis to the licensed boiler, gas, permit, and compliance work the building actually requires.
Start with steam heating repair and service. Bring the system identity card, the recent log, photos, prior service reports, and the room pattern so the first visit begins with evidence instead of guesswork.
Common Questions
How can I tell whether my Brooklyn building has one-pipe or two-pipe steam?
Start at a radiator. A one-pipe radiator normally has one connection that carries steam in and condensate back, plus an air vent on the radiator. A two-pipe radiator has separate supply and return connections and may use a steam trap. Record what you see, but have a steam professional confirm the system before choosing vents, controls, traps, or repair parts.
What should a steam heat owner record during the heating season?
Keep the date, outdoor conditions, thermostat or control call, boiler water-line observation, any water added, rooms that are cold or overheated, unusual sound or vent behavior, visible leakage, service performed, and the result after service. A repeated pattern is more useful to a technician than a general note that the heat is uneven.
Should an owner adjust steam pressure or boiler safety controls?
No. An owner manual should help you observe and describe the system, not bypass safeties or prescribe settings without the boiler, control, piping, and manufacturer information. Photograph the display or setting from a safe position and give it to the qualified steam professional responsible for diagnosis.
Does a small steam-heated building need an annual DOB boiler inspection?
Not every small residential boiler is covered. DOB says annual low-pressure boiler inspection coverage depends on the boiler stamp and property type; residential buildings with five families or fewer are generally listed as not requiring the annual inspection, while mixed-use and certain other properties can be covered. Confirm the actual property and equipment record instead of deciding from building size alone.
What should I do if a carbon monoxide alarm sounds?
Get everyone outside immediately and call 911. Do not treat an alarm as a steam-balancing problem or silence it to continue testing. The fuel-burning equipment, detector, and venting need qualified inspection before the area is treated as safe.
